Lucia 240
Compact Mono 240 W Amplifier for High Impedance 70 V Installation Applications
- Compact mono amplifier which offers 240 W for high impedance speakers on 70 V distribution lines?
- Comprehensive on-board DSP with loudspeaker processing and innovative features which enhance performance and simplifies system design and commissioning
- Configuration software wizard for initial set-up and advanced editor for preset configuration (LUCIA connection via USB) available for Windows* and Mac*
- Energy efficient with Energy?Star*?certification for supreme green credentials and exceptionally low lifetime running costs??
- Automatic Dynamic Loudness Contouring adapts to optimize performance at any output level?
- Comprehensive DSP features with per-channel presets for high-pass filter, parametric EQ, multi-band compressor and look-ahead limiter?
- Optimized presets available for a wide range of loudspeaker models for fast configuration
- Enhanced Bass Profile for extended LF response with small loudspeakers
- Proprietary Auto Load Sense automatically sets VPL (Voltage Peak Limiter) for optimum performance with any connected load??
- Efficient Class-D amplifier?with low distortion and minimal heat dissipation
- Compact form factor in a half-rack, 1U chassis with supplied bracket for discreet on-wall mounting?
- Configurable GPIO port for remote control (e.g. wall panel) for channel switching, level control and integration with paging systems
- Comprehensive circuit protection for fail safe operation, including short circuit, thermal and under-voltage protection
- Universal power supply supports 100
- 240 V AC at 50 or 60 Hz - Intelligent fan control for silent operation at idle and at lower output levels
- Front panel power and fault indication as well as per-channel signal LED and attenuation knob

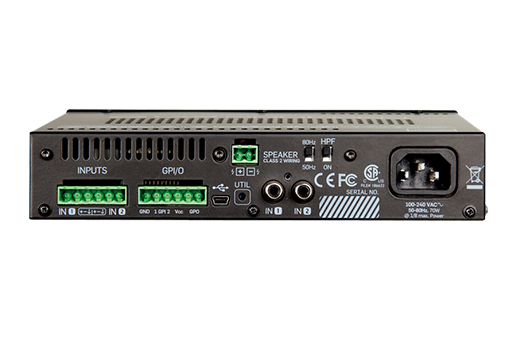

- Balanced high quality analog inputs and amplifier outputs on detachable screw terminals
- Parallel analogue input on unbalanced RCA connectors with optimized gain for mobile and other unbalanced sources
- Rackmount kit, pole-mount kit and wall panel kits available as accessories
- 10-Year Warranty Program*
- Designed and engineered in Sweden
